Michigan Scientific Wheel Force Transducers...

... are used in typical environmental conditions as well as in laboratory conditions. They are used to measure all forces and moments on a vehicle wheel in real driving conditions. The transducers output force, moments, acceleration, speed, and wheel position signals to provide complete spindle load data. Applications for the transducers includes brake testing, harsh environment testing (snow, mud, sand), pothole testing, lane change testing, and many other vehicle related tests.

Measurement examples

Examples of measurement data from actual tests using the Wheel Force Transducers are shown below:

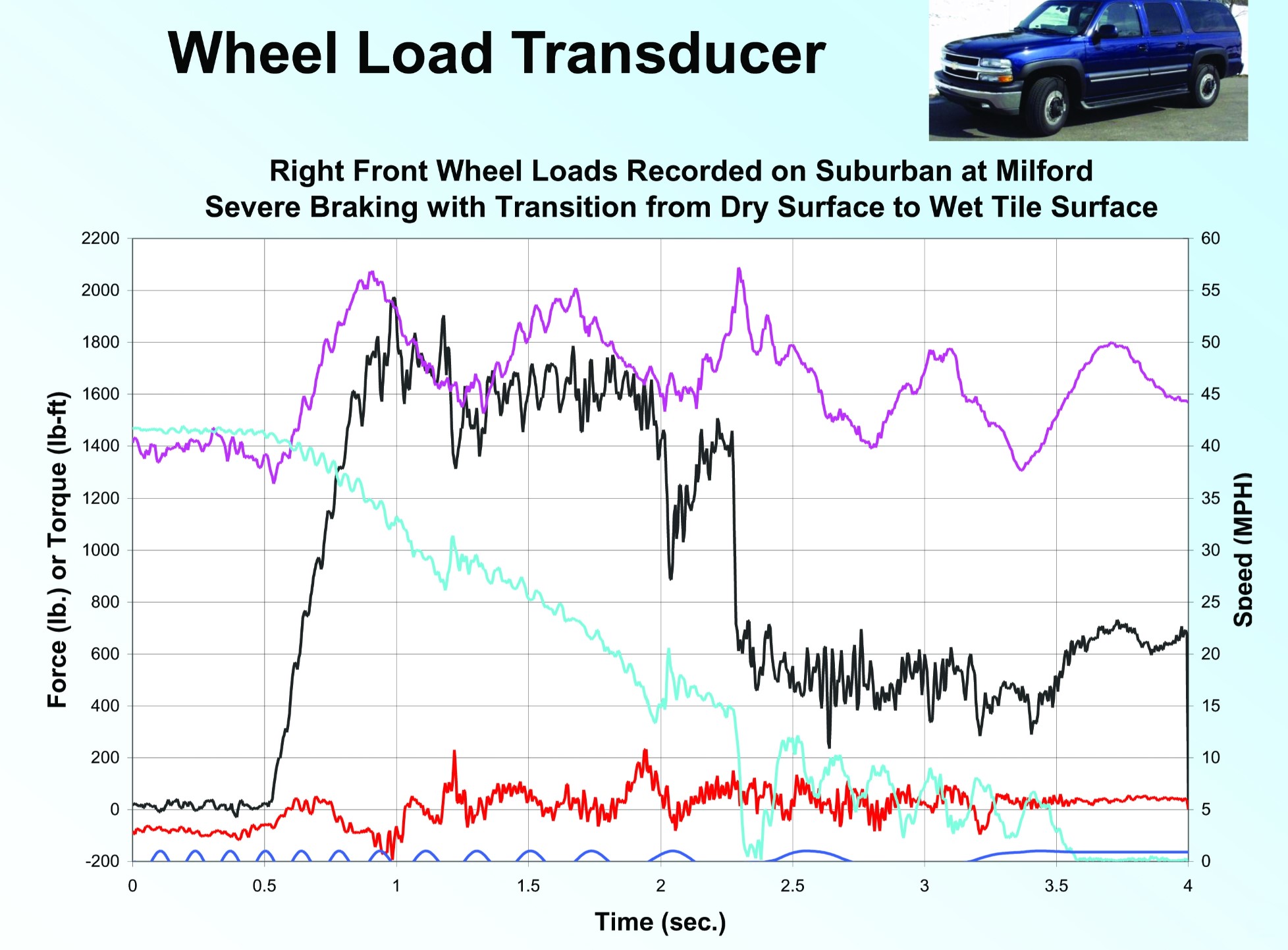

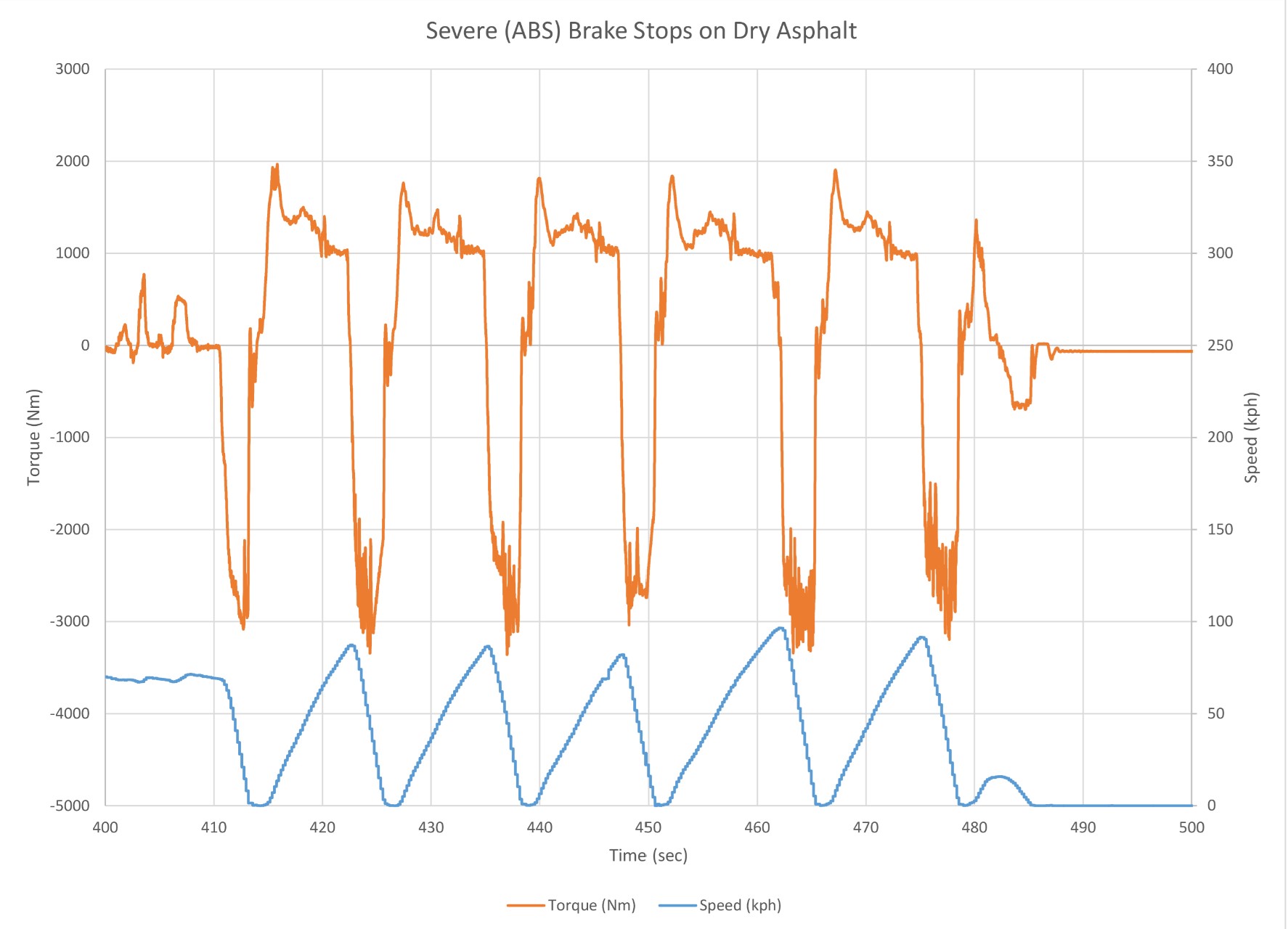

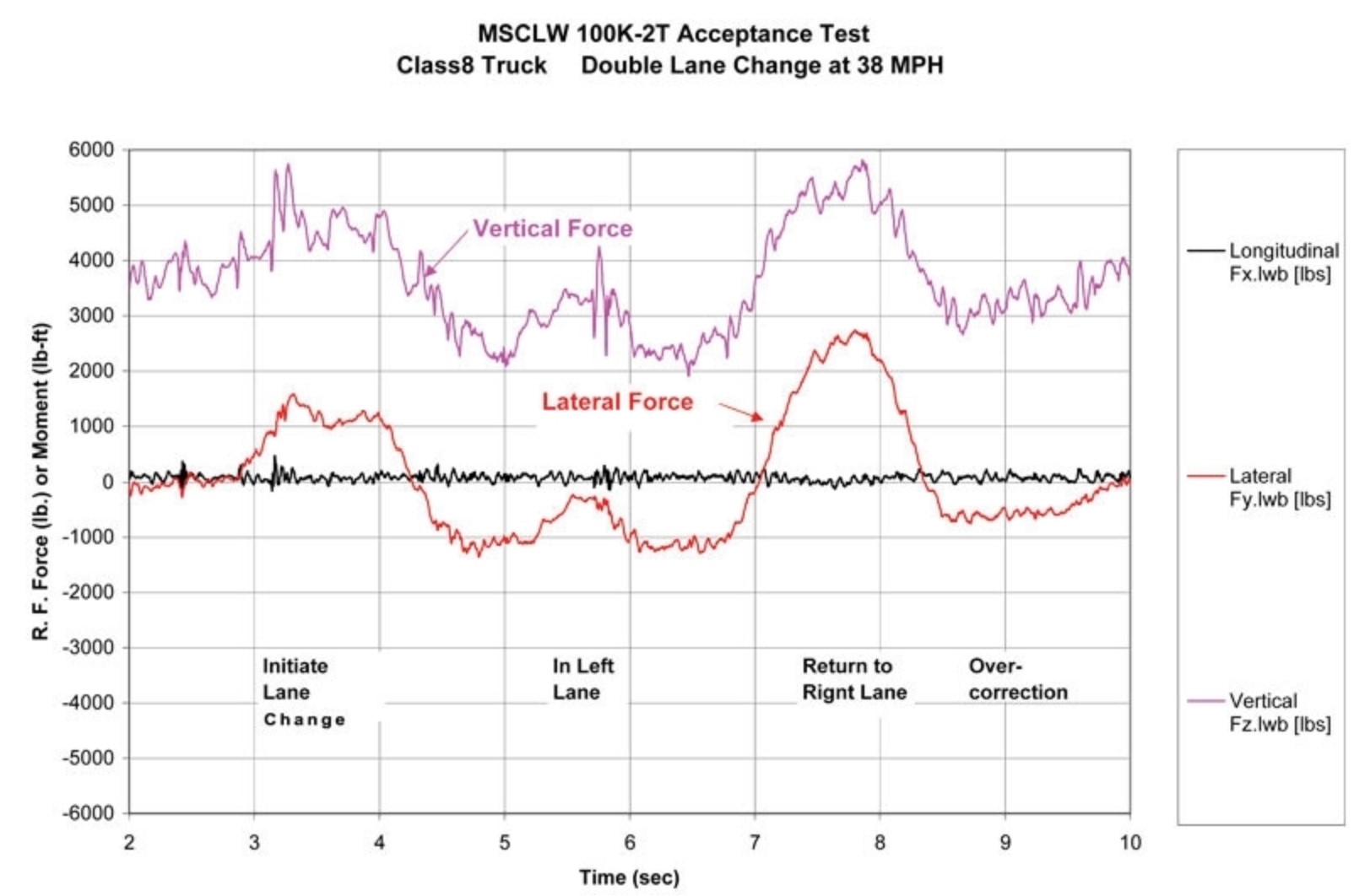

Severe braking tests on dry and wet road Lane changing on a heavy duty vehicle

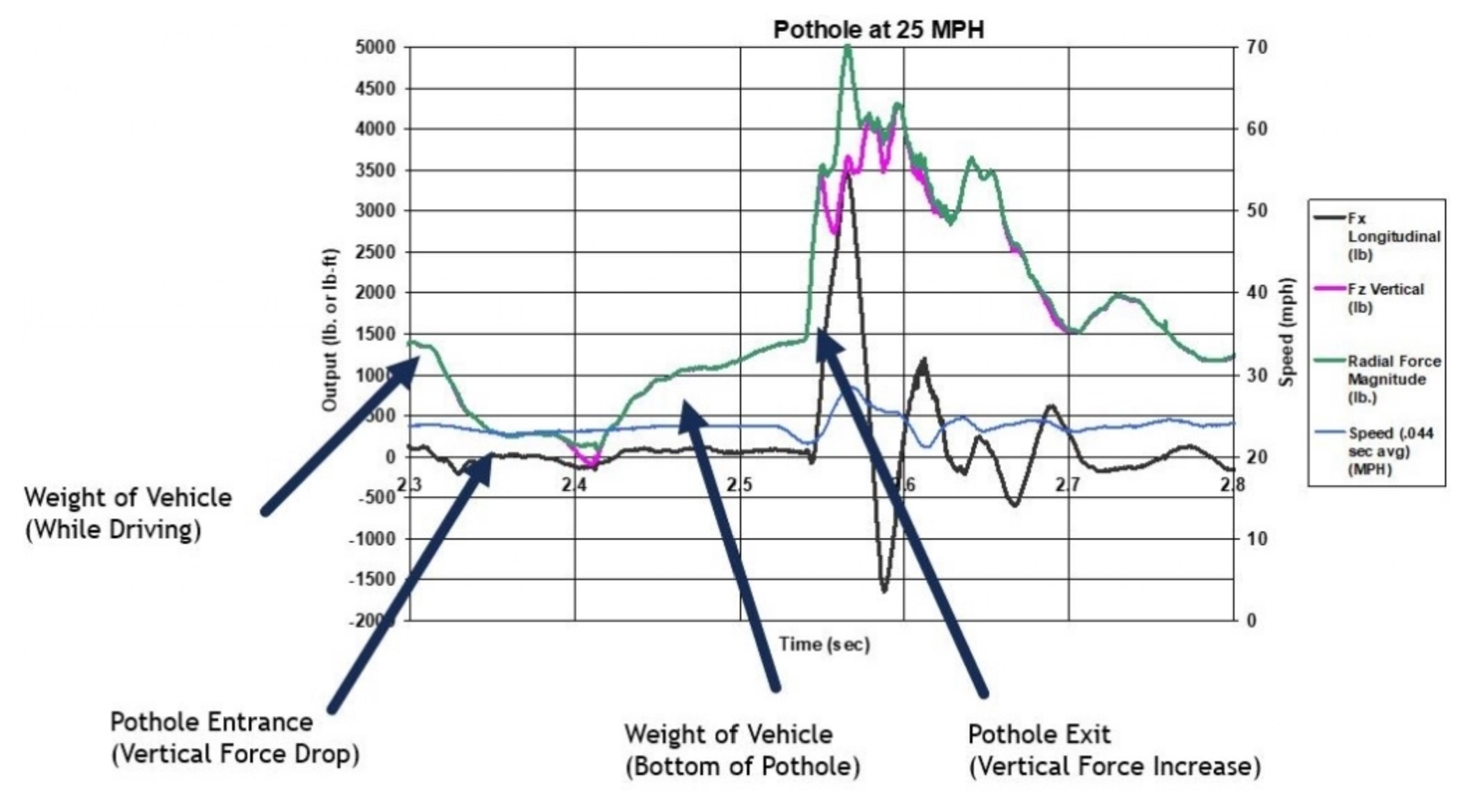

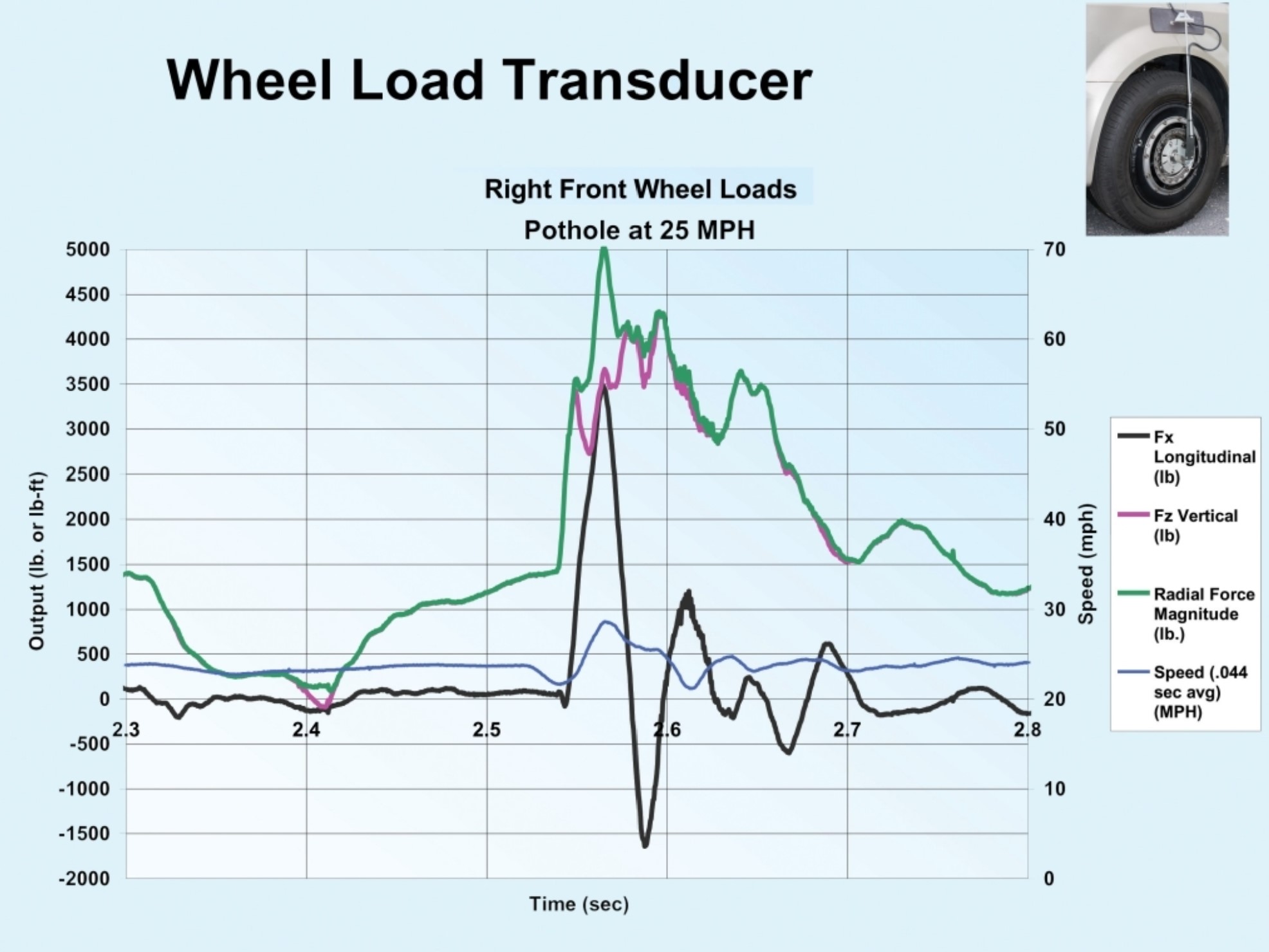

Vehicle durability testing includes driving measurements on bad quality roads, with holes, pavements, etc... The highly dynamic measurements and repeatibility allows the engineers enhancing the trade-off between comfort, durability and driving behaviour

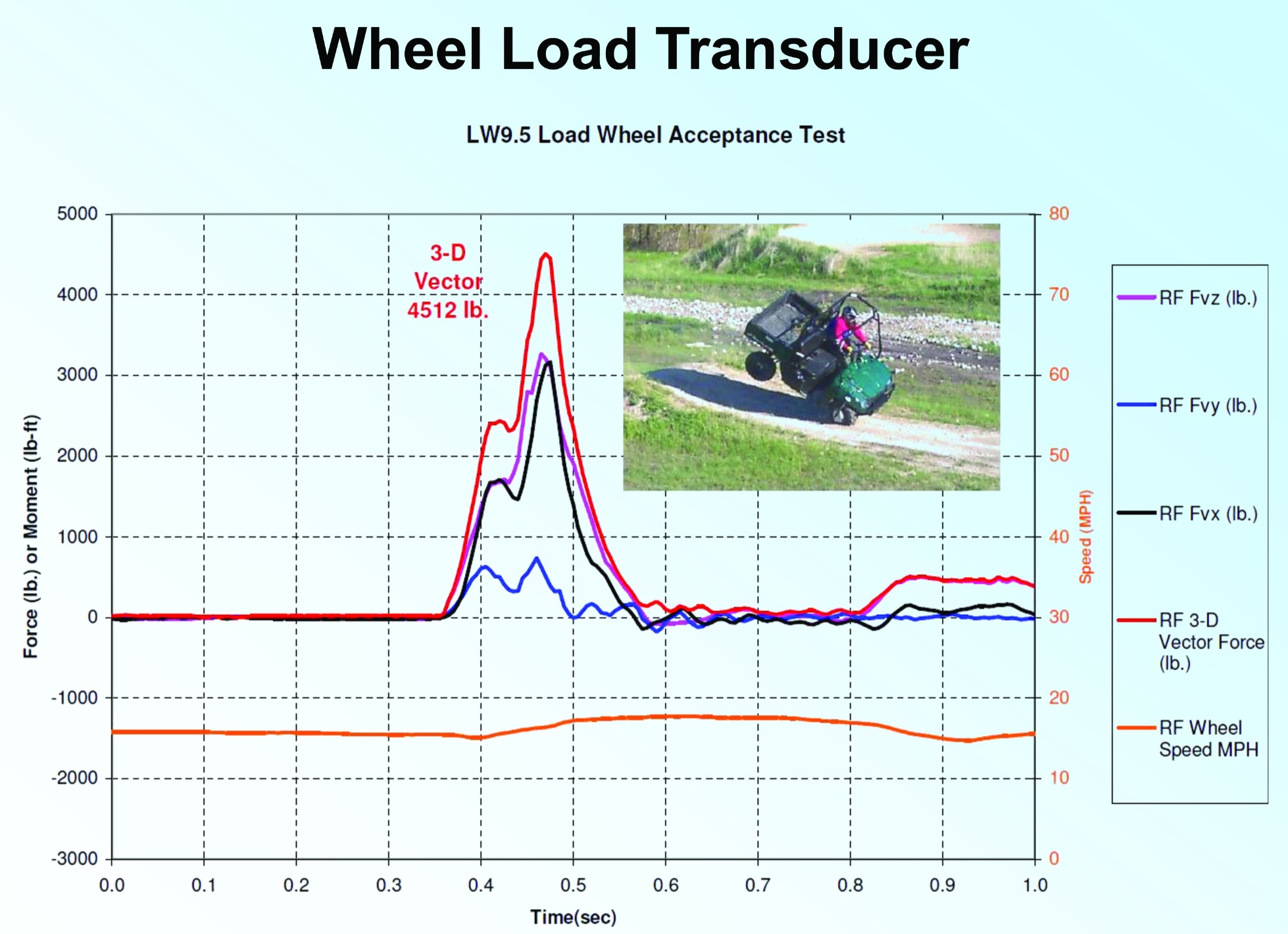

Severe jump test to ensure ATV offroad driving capability Braking test repetitions aimed to assess the braking efficiency while temperature increases

Michigan Scientific offers the widest wheel force transducers portfolio on the market.

Light and medium duty vehicles

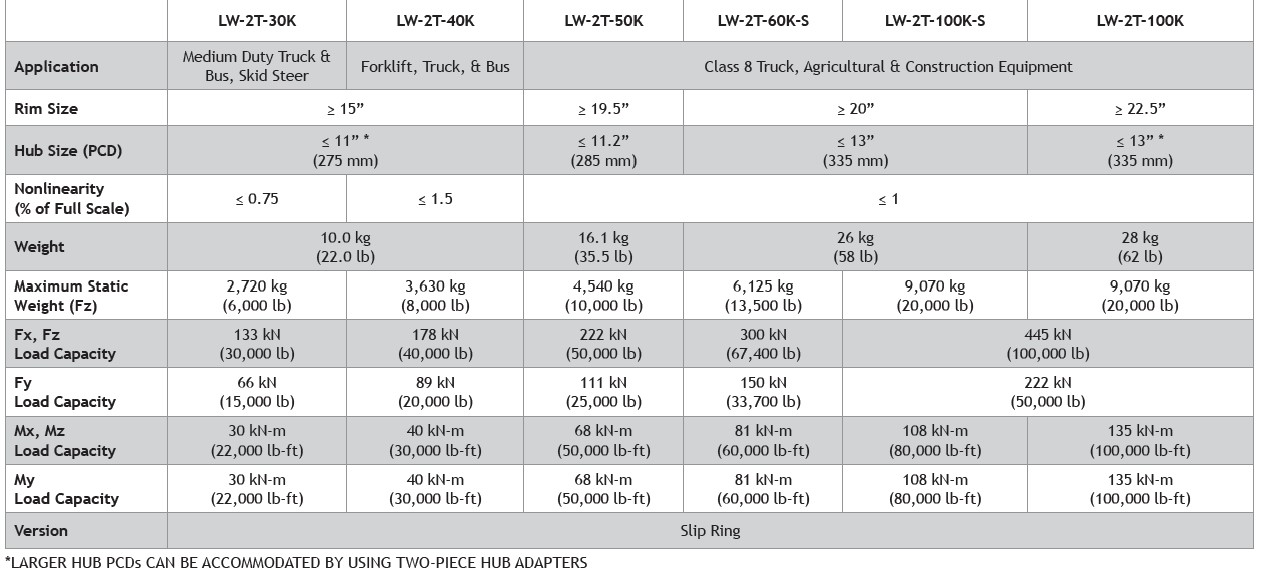

heavy duty vehicles

Application examples

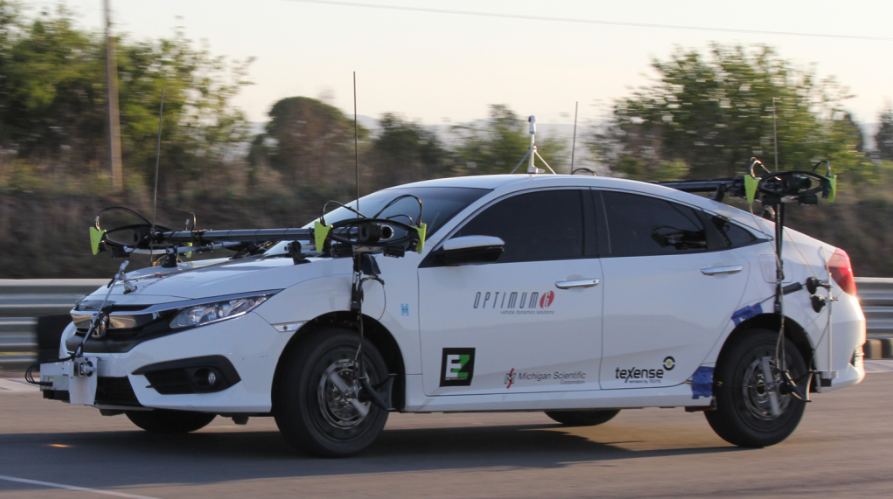

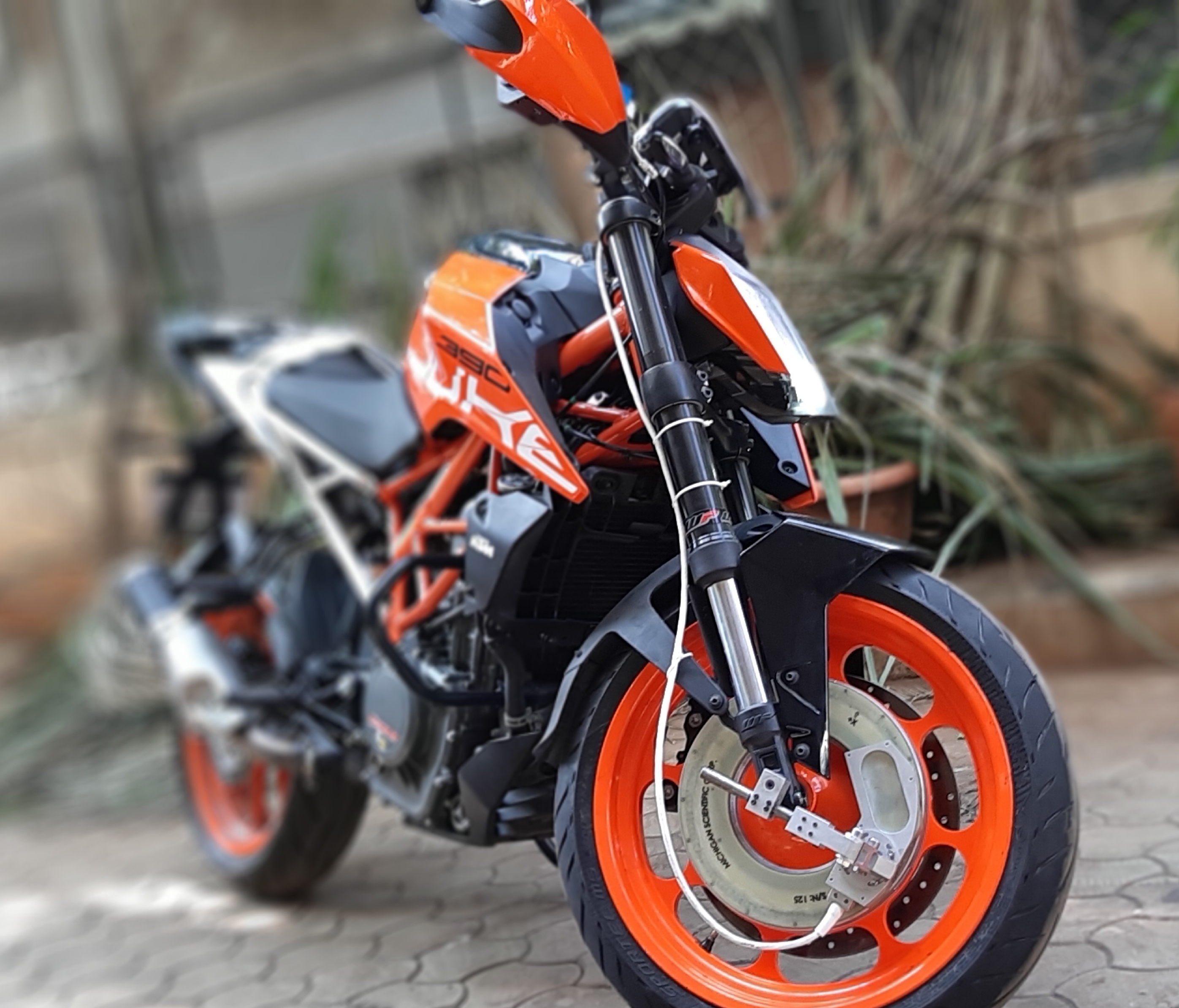

Motorcycles Passenger cars, SUV, Light duty commercial vehicles

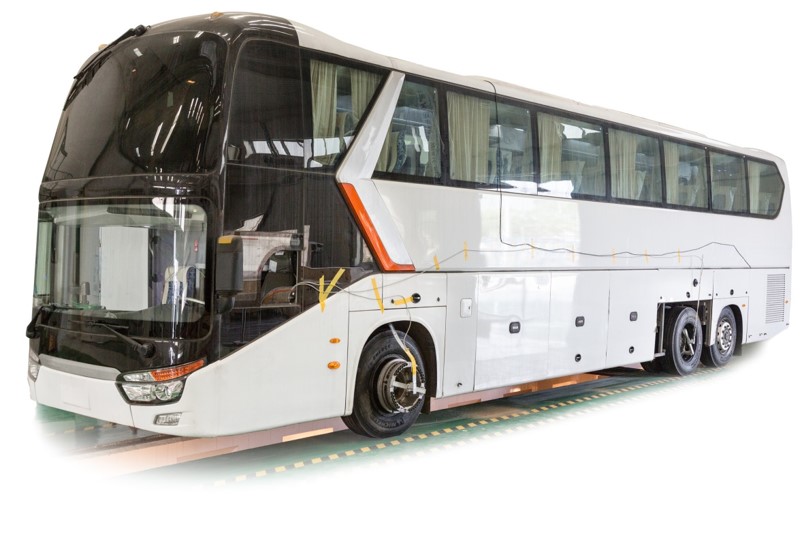

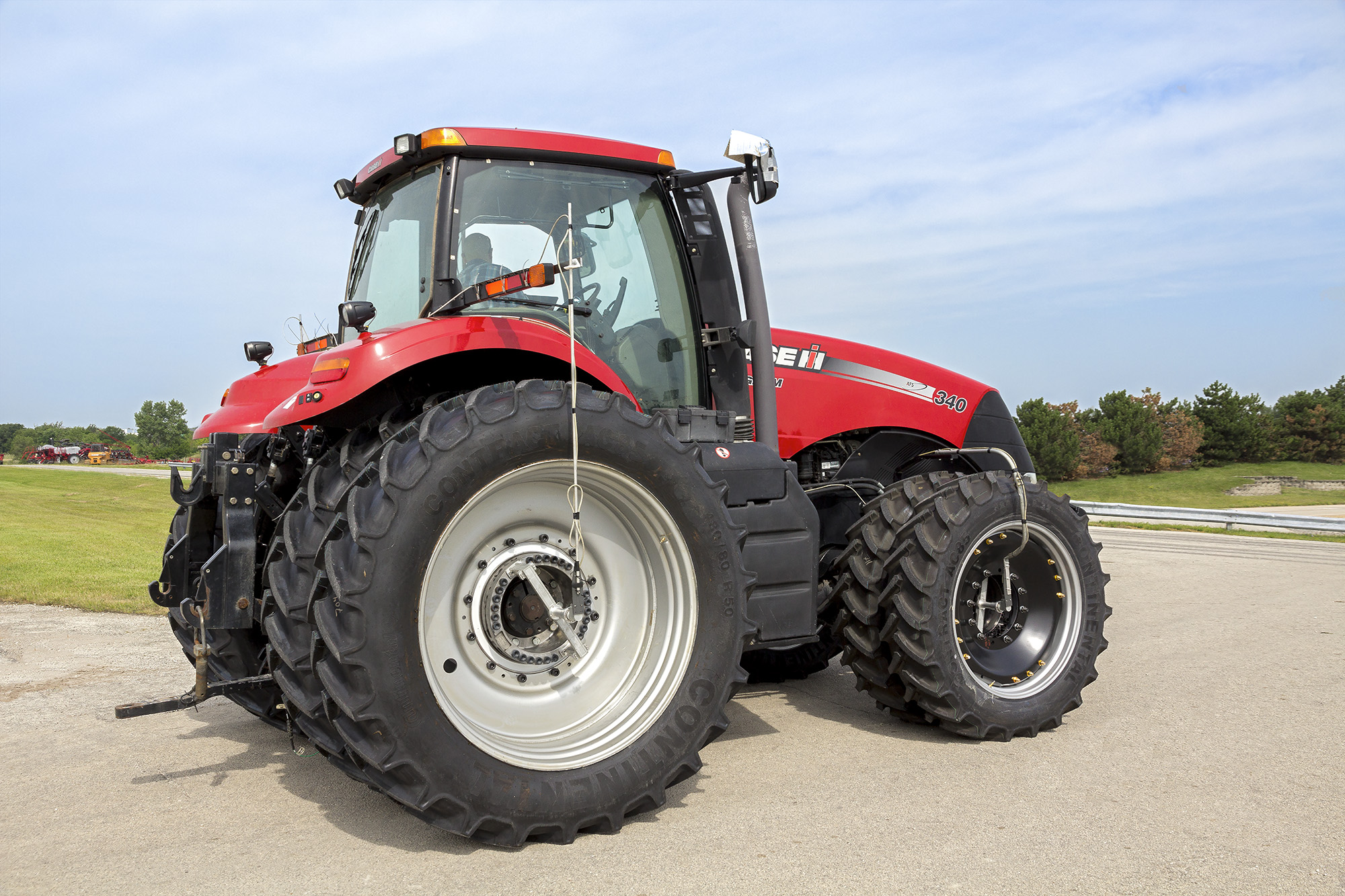

Bus, Trucks Tractors, Trailers, heavy Trucks

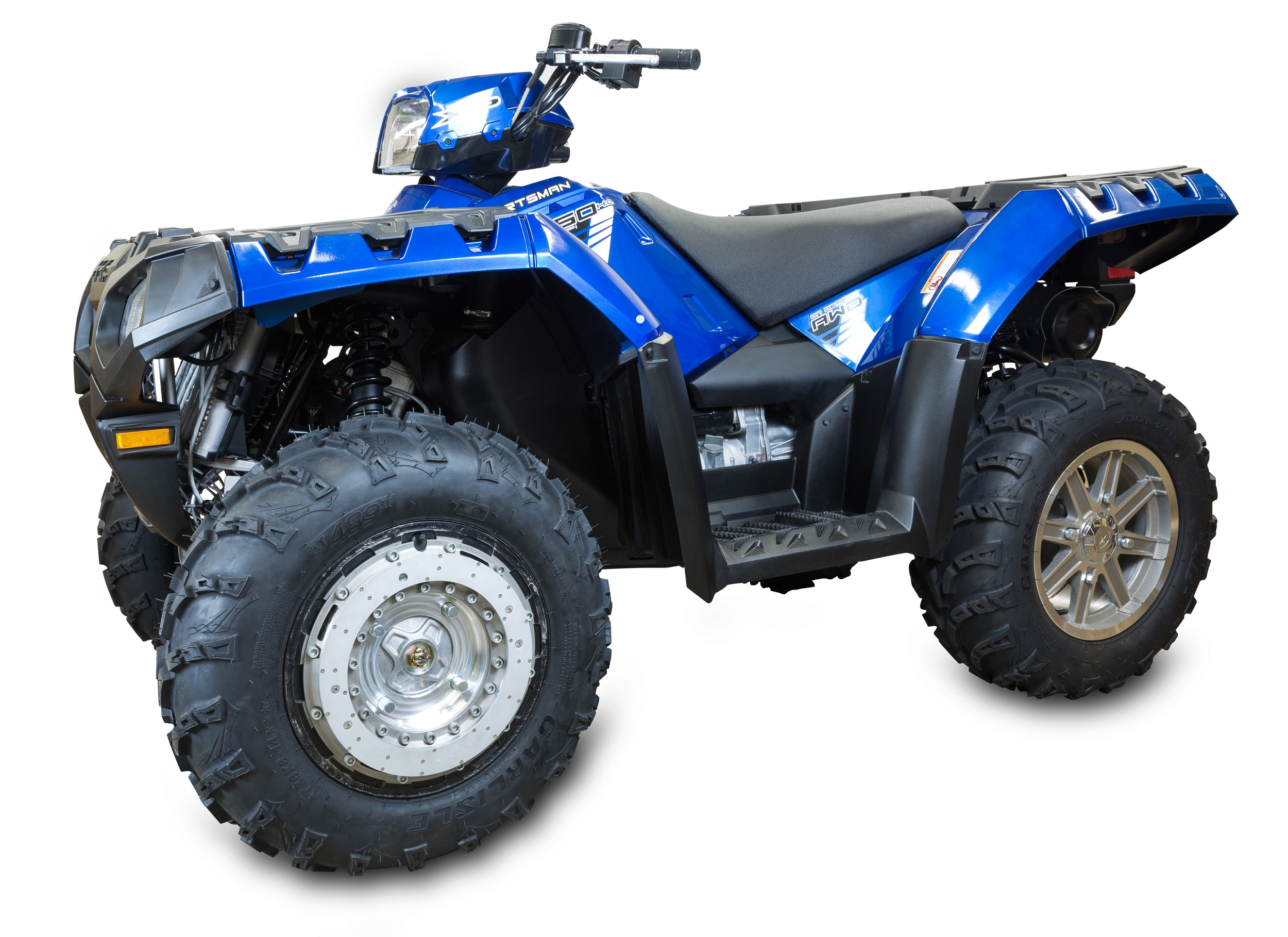

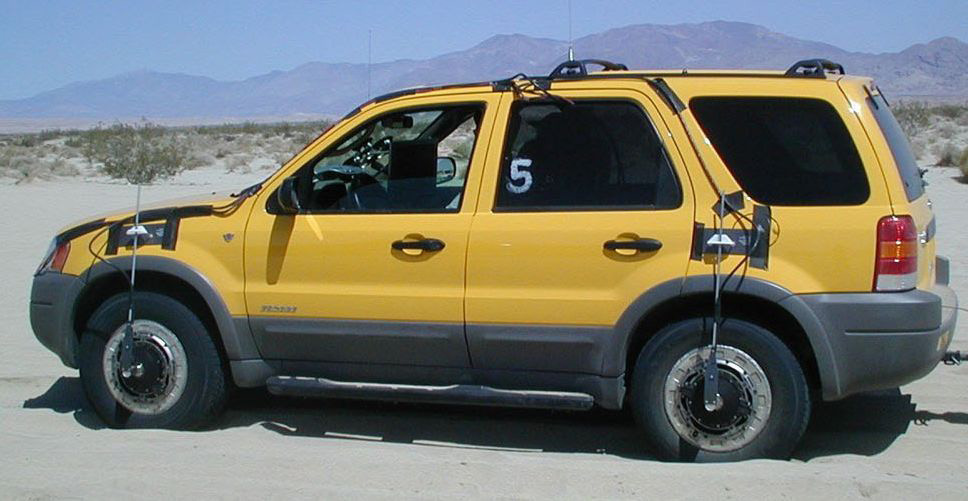

4WD vehicles, SUV ATV

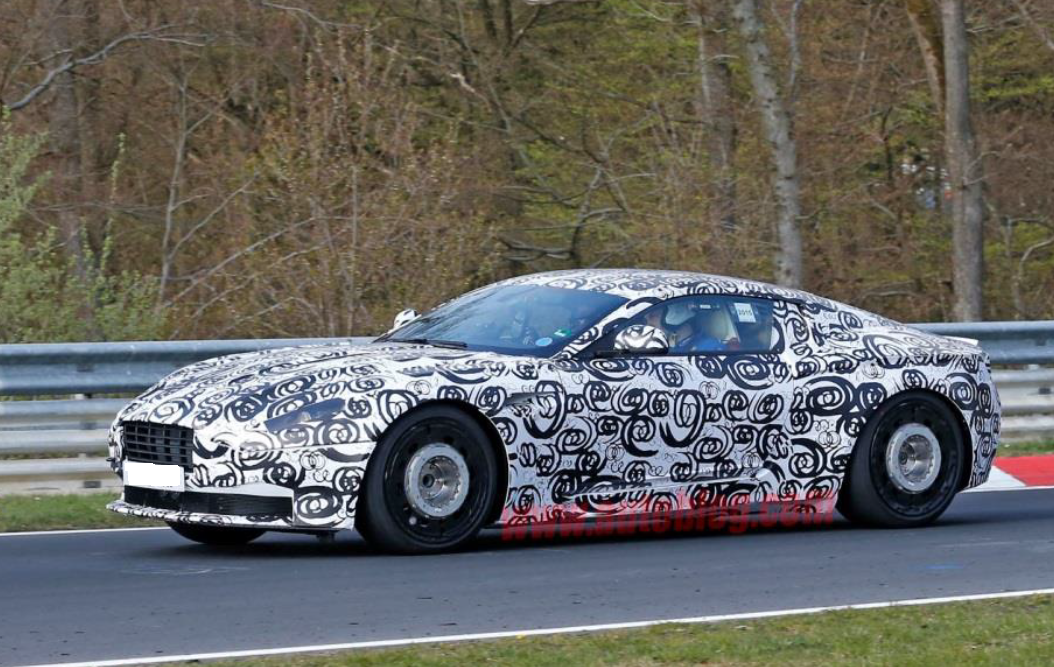

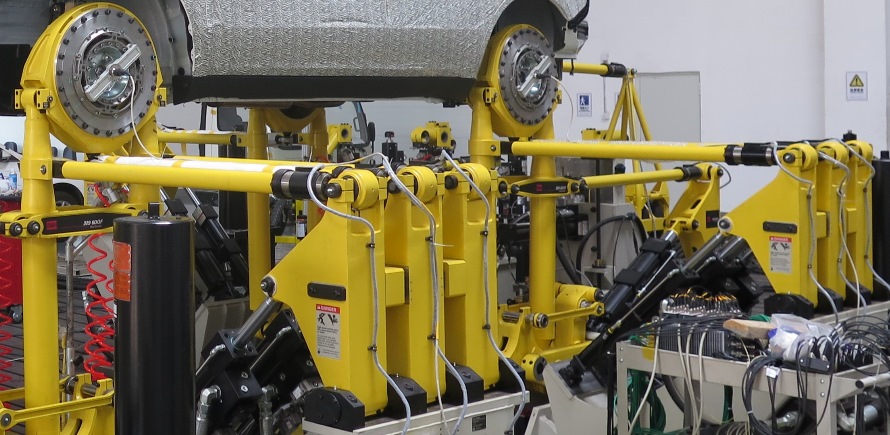

Test Rigs, spinning or non spinning applications Sport and Racing cars

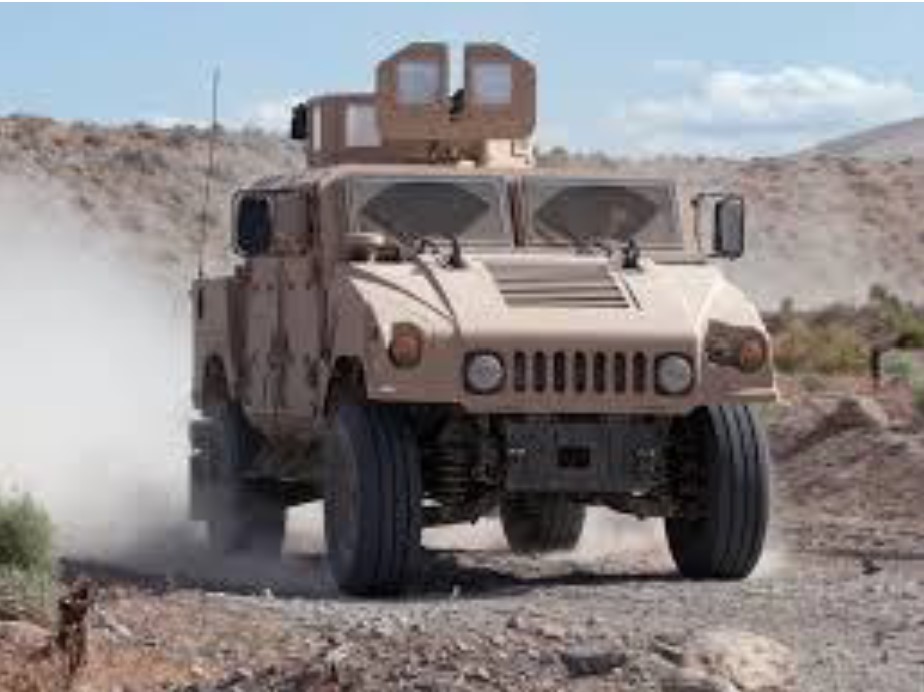

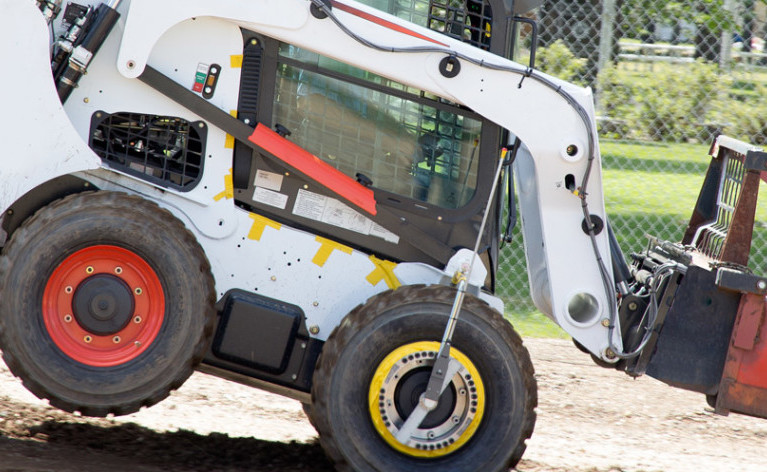

Forklifts Military vehicles

Sélection de produits

6-axis force transducer

LW-2T-20K

Capteur de force 6 axes - 90 kN - 15 kNm - Utilitaire
6 Axis Wheel Force Transducer

LW-2T-30K

Capteur de force 6 axes - 133 kN - Utilitaire
6 Axis Wheel Force Transducer - 178 kN

LW-2T-40K

Capteur de Force 6 axes - 178 kN- Poids lourd
6 Axis Wheel Force Transducer - 35,6 kN - ATV and Small Vehicle

LW9.5

Capteur de Force 6 axes - 35,6 kN - engin de manutention
Capteur de roue 6 axes - 222 kN - Poids Lourd

LW-2T-50K

Capteur de roue 6 axes - 222 kN - Poids Lourd
6 Axis Wheel Force Transducer

LW-2T-60K-S

Capteur de roue dynamométrique 6 composantes - 300 kN - Poids lourd
Capteur de Force 6 axes - 445 kN / 108 kNm - Poids Lourd - Agricole

LW-2T-100K-S

Capteur de Force 6 axes - 445 kN / 108 kNm - Poids Lourd - Agricole
6 Axis Wheel Force Transducer

LW12.8-50

Capteur de roue dynamométrique 6 composantes - 50 kN - Automobile
6 Axis Wheel Force Transducer - Heavy Trucks and Construction Equiments

LW-2T-100K

Capteur de Force 6 axes - 445 kN / 135 kNm - Poids Lourds
Capteur de Force 6 axes - Roue de Moto

LW-MC-3.5K

Capteur de Force 6 axes - Roue de Moto
6 Axis Wheel Force Transducer  - 50 kN - Telemetry - Cars and Light Duty Truck

LW12.8-50-TEL

Capteur de roue 6 axes - 50 kN - Télémétrie - Automobile
6 Axis Wheel Force Transducer - 93 kN - Forklift and Construction Equipment

LW9.5-HS

Capteur de roue 6 axes - 93 kN - Chariot élévateur
6 Axis Wheel Force Transducer

LW65

Capteur de roue 6 composantes - 65 kN - 10,5 kNm - Car - SUV
