Ref: 2470

Capteur de Force 100 kN - Traction et Compression

Proprietary Interface temperature compensated strain gages
Stainless steel construction
Welded diaphragm
Tension and compression
Compact size
Counter-bored mounting holes in 10K lbf model

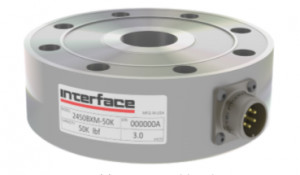

The 2400 is a stainless steel load cell designed for applications requiring a hermetic seal for use in general industrial applications. Models 2440, 2450, 2470, and 2480 are available.

Type de capteur: Galette
Direction de mesure: Traction + Comp.
Nombre de composantes: 1 Axes
Etendue de mesure: 750000 à 100000 N
Gamme de force: 1 MN - 10 MN
Tension d'alimentation: 10 Vcc
Classe de Protection: IP40
Boitier: Plastique

Fiche technique
