Collecteur tournant 7 pistes à arbre creux pour test automobile - diametre 30mm
- Collecteur tournant tubulaire - 7 pistes
- Vitesse de rotation maximale : 3500 rpm
- Ideal for automotive half shaft torque measurements
- Mounts on shafts up to 1.2” (30 mm) in diameter
- Rugged stainless steel construction
- Permanently lubricated bearings
- Instrumentation quality rings and brushes
- weatherproof (not submersible)
- Operating temperature : -40 to 121°C
- Optional Encoder and/or Amplifier
Présentation du collecteur tournant B7-1.2W
Michigan Scientific’s B7-T-1.2W Weatherproof Slip Ring Assembly is ideal for applications that require a slip ring to be mounted directly on a rotating shaft. The B7-T-1.2W was designed to make long-term, all weather (not submersible), torque measurements on automotive half shafts, but can be used in other applications with a shaft up to 1.2”(30 mm) in diameter (larger bores are available, consult factory).
The slip ring sealing system protects against water spray, grit, dust, mud, slush, and snow.

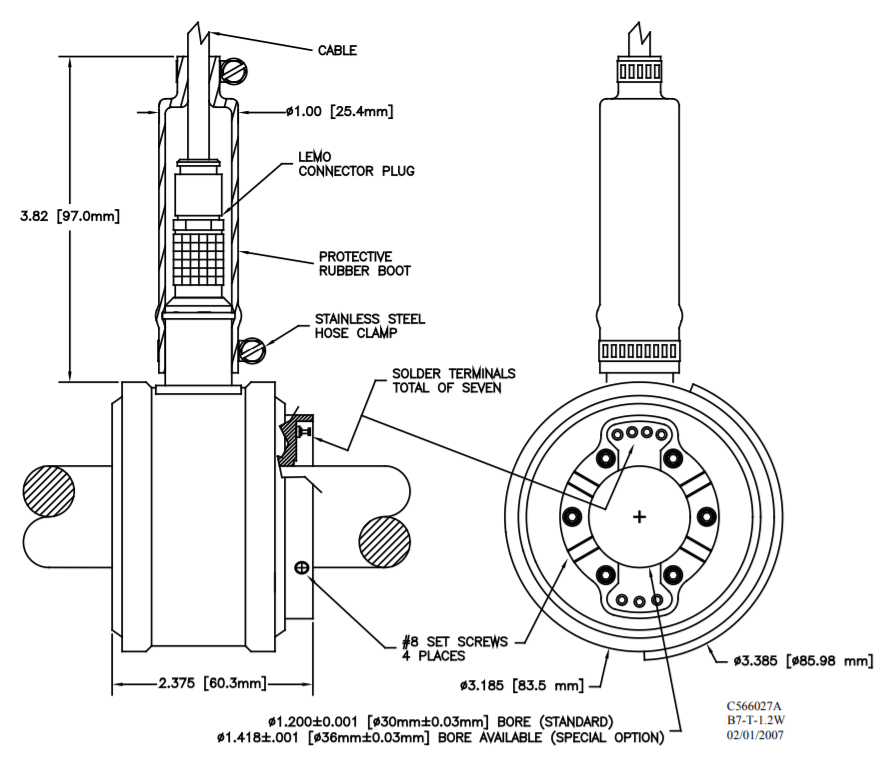

Connections to strain gages, thermocouples, and other sensors are made via color-coded solder terminals located on the slip ring rotor. Each slip ring assembly includes a 15 ft stator cable with a protective rubber boot for the connector at the slip ring.
Options
Stator connection
Soldering terminal or LEMO connector
60 ppr Encoder (Model B7-1.2W/E60)
The encoder included in the B7-T-1.2W/E60 Tubular Slip Ring produces a 60 pulse/revolution 5-volt square wave. The TTL compatible signal is produced by a hall-effect sensor, which allows speed to be determined down to 0 mph. The voltage required to drive the encoder can range from 5.5 to 45 DC volts.
Applications du collecteur tournant B7-1.2W
- torque measurement on half shaft
- endurance tests
- Série
- B-Serie
- Montage
- Radial - sur arbre
- Nombre de pistes
- 7
- Vitesse de rotation maxi
- 3500 rpm
- Version étanche
- inclus
- Codeur angulaire
- sans, 60 impulsions/tour
- Courant maximal par voie
- 1000 mA
- Diamètre rotor
- 30 mm
- Diamètre stator
- 71.8 mm
- Longueur
- 71.7 mm
- Poids
- 1
- Température de fonctionnement
- -40 à 121 °C
- Contacts rotor
- Picots à souder
- Contacts stator
- Connecteur standard
- Remarque
- Conntecteur: Bendix PT02E-10-6P
- Rotor diameter: 31.5 mm
- Stator diameter: 71.7 mm
- Length: 71.8 mm
- Encoder
- Connector type on Stator
- câble
- conditionnement de signal pour jauges de contraintes
- conditionnement de signal pour thermocouples
